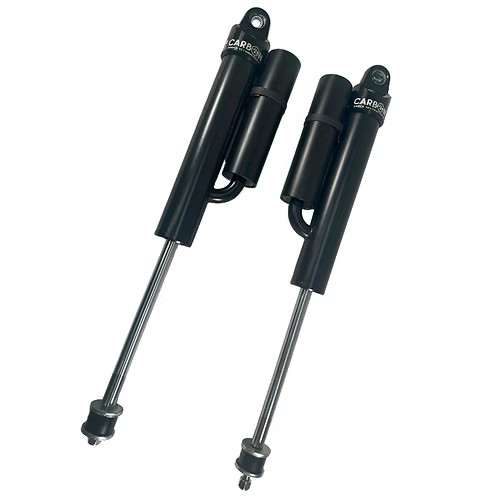

Rear OEM Shocks for your 2014+ Ram 2500 Power Wagon
Shocks are Piggyback if using a Reservoir and no mounts are needed.
*Sold in Pairs*
Choose from 3 Reservoir Options:
- Non Reservoir
- 12" Aluminum Race Reservoirs - All Billet parts with Proper Wear band IFP designed for race use and hard wheeling
- Dual Speed adjustable reservoirs allows for both high speed and low speed adjustments giving you the perfect ride every time!
Lift Height- Factory Spec
Valving Options
Please Choose from the following so we can better valve your shocks to your specific truck and application.
A. Daily Driver + Light Offroad - Occasional Dirt Roads but your primary life is on the road.
B. Daily Driver + Heavy Offroad - Mild Rocks and woops are your home but not to fast because you still need to drive home in it but want to have fun!
C. Daily Drive + Overlander - Mild wheeling but supportive for heavy equipment loads and control. Slower suspension cycling but able to put in work.
D. Heavy Offroad - Not afraid to push the vehicle to it limits and take the big hits at higher speeds. Fine for on road driving but stiffer and not as plush.
Shock Material Breakdown:
Shock Shafts
Carbon Shock Technologies prides themselves on the quality of its shock shafts, which are designed and manufactured in the United States of America. Their shock shafts are crafted from cold-drawn, stress-relieved 1050 induction chromed rod, which is exclusively sourced from American suppliers. The specific grade utilized possesses a minimum yield PSI of 100,000 and a hardness rating of 35 Rockwell Standard. 68/70 Rockwell C High Strength. H900 Stainless 40 Rockwell
To enhance the strength and durability of their shafts, Carbon employs a machining process that involves inserting threads 1/4" deeper into the rod end to create a stress collar. This technique reduces the likelihood of shearing due to weaknesses caused by thread cutting.
Moreover, Carbon ensures that their shaft tenons are machined smoothly to provide a rounded edge. This modification serves a dual purpose, reducing a 90-degree shear edge on valving by providing a smooth radius to bend, and minimizing seal damage during installation.
Shock Piston
Carbon Shock Technologies Pistons are Designed Manufactured and Assembled in America Using American Aluminum. Standard pistons are manufactured from 7075 Aluminum and designed to promote a progressive compliment of valving.
Pistons are Anodized with a smooth black finish.
Shock Bodies
Carbon Shock Technologies Shock bodies are made from American Made Honed Steel Tubing to hold a tolerance of +-.002
Shocks are coated in the Industry Leading Cerakote Baked on Coating for superior Corrosion resistance.
Shock Top Caps
Carbon Shocks predominantly employs the use of a tube-over-top-cap design, which has been found to possess superior characteristics for various reasons.
Firstly, this design provides better seal efficiency due to the o-ring placement, which allows for two faces to be in contact with the sealing o-ring. Consequently, the pressure against the o-ring is increased, resulting in a stronger seal.
Secondly, the tube-over-top-cap design enhances strength by utilizing the threads of the body to mount the top cap. This approach increases the overall tube strength since the shock requires threads to be cut on only the outside, preserving the strength of the tube wall and preventing blowouts and tube fracturing under extreme conditions.
Moreover, this design enables shorter shocks, allowing for longer travel in a tighter package. The piston can utilize the entire length of the tube in the top cap due to this design.
Finally, Carbon Shocks utilize a double start thread cut, which enhances strength by using two threads cut in sync. This dual start thread ensures that the top cap locks in place more securely than other designs, preventing it from un-threading.
Reservoir Hoses and Fittings
Carbon Shock Technologies employs only the highest quality industrial-grade hoses and fittings in its manufacturing processes. Carbon utilizes a variety of fittings Globally and domestically sourced and utilizes full flow industrial braided hydraulic rated hose, enabling proper flow to the reservoir strong durability and quality that will last. Hoses and fittings are backed by a 1 year warranty.
